PERMANENT TOWERS
These towers are designed to be installed in a permanent location.
We offer various iconic designs, who will pinpoint a site for miles around.
The towers are equipped with an elevator and or staircase.
We offer various iconic designs, who will pinpoint a site for miles around.
The towers are equipped with an elevator and or staircase.

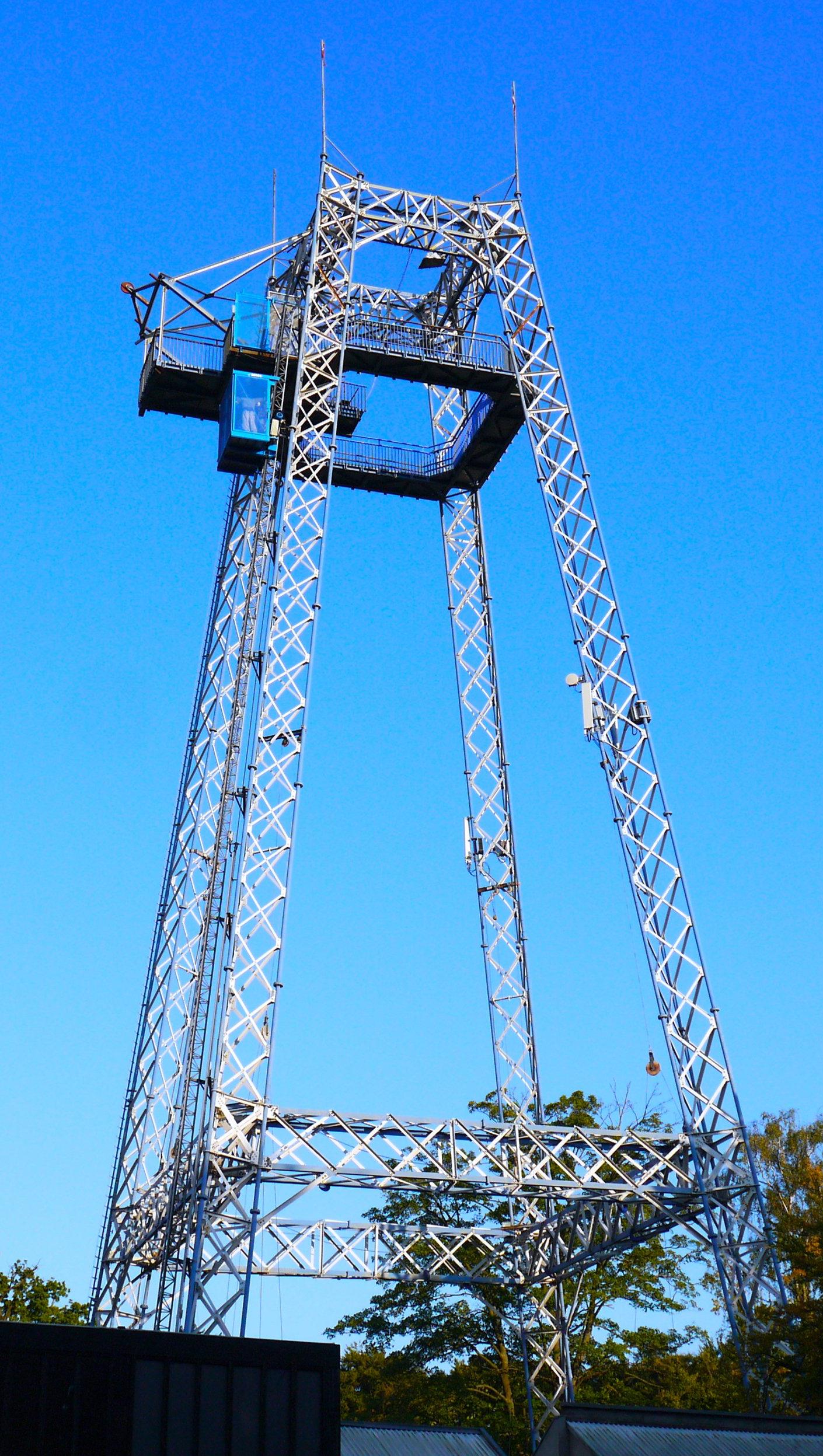

SPT40 - iconic column tower
This is a permanent tower truss structure, designed as multi-use structure, that has the stability to accomodate not only the SCAD Dive, but other rides like zip lines, swings, glasfloor, speed climbing, walk of fear as well as a panoramic platform. It is particularly designed as an
expandable tower ride attraction for medium size amusement businesses or stand alone attraction and offers the thrill of height, as well as the fascination of a beautiful view for visitors. As a spectacular eye catcher it pinpoints its position for miles around.
It consists of four major truss columns, horizontally supported only in the upper and lower segments to leave free visibility in the centre, which offers a spectacular view for spectators. Outside the tower there is an 8 passenger elevator, that travels independently between the ground and the panoramic platform. The SCAD ride inside the tower is suspended by a spring system and hoisted by a 4 cable winch located on the ground.
Guests
who wish to experience more than the view, are fitted with free fall seat harness CFF on the ground, before entering the elevator to travel to the panoramic platform. At top the rider hooks onto the release system and upon a countdown experiences free fall at it is best - unattached and pure, but controlled by the CFF harness.
After a 100 ft free fall the rider lands in a 300 square foot airbag supported SCAD double net. After landing the SCAD is lowered to ground in 10 seconds, the rider can step out and the SCAD is hoisted up again.
The tower is also equipped with floodlights for night operation. A music sound system is optionally recommended. All parts of the tower are manufactured to the highest quality according to EN 13814. The SCAD system is type approved by the German technical control board TUV and complies with the US ASTM standards. The decoration and features can be customized to meet customer-specific requirements.
Video Link for permanent tower
| Technical data | |
|---|---|
| Ride capacity | 60 / h |
| Platform capacity | 30 persons |
| Footprint | 17 x 17 m / 53 x 53 ft |
| Rec. ride price | 20 USD / EURO |
| Total height | 55m / 165 ft |
| Power Europe | 480 V / 9,2 kW / 40 A |
| Power US | 240 V / 9,2 kW / 80 A |
| Min. staff | 2 |
| Travel time elevator | 50 sec / 8 persons |
| Ground load | 200 kN/m2 |
| Suspension type | springs |
| Total time per ride | 60 sec. |
| Foundations | 4 pc 3 x 3 x 1m (10 x 10x 4ft) |
| Installation | 6 weeks |
| Reg. Replacements | springs every 6000 loads |
| top net 3 - 4000 loads | |
| Additional features | Mega Splash Pool |
| Structure illumination | |
| Theming | |
| Video and sound systems |

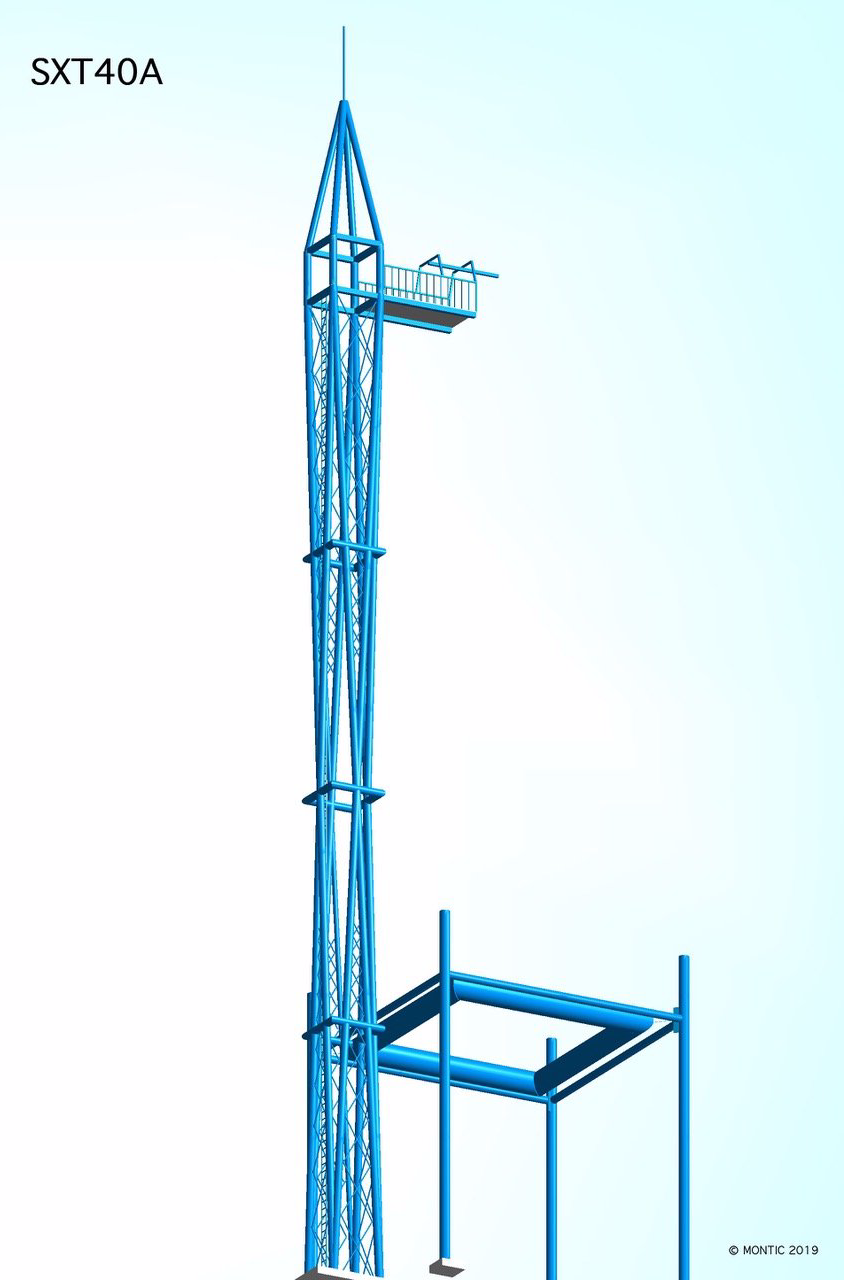

SXT40A - iconic single column
This is a permanent pipe tower structure, designed as multi-use structure, which also has the stability to accomodate several rides and is expandable with growing success. The sleek X pipe design is unique,
very economic and an eye catcher for medium size amusement businesses or as stand alone attraction.
The tower is equipped with an 8 passenger elevator, that travels independently between the ground and the panoramic platform. The SCAD ride view is completely unobstructed and set into a box next to the tower.
Guests who wish to experience more than the view, are fitted with free fall seat harness CFF on the ground, before entering the elevator to travel to the panoramic platform. At top the rider hooks onto the release system and upon a countdown experiences free fall at it is best - unattached and pure, but controlled by the CFF harness.
After a 100 ft free fall the rider lands in a 300 square foot airbag supported SCAD double net. After landing the SCAD is lowered to ground in 10 seconds, the rider can step out and the SCAD is hoisted up again.
The tower is also equipped with floodlights for night operation. A music sound system is optionally recommended. All parts of the tower are manufactured to the highest quality according to EN 13814. The SCAD system is type approved by the German technical control board TÜV and complies with the US ASTM standards. The decoration and features can be customized.

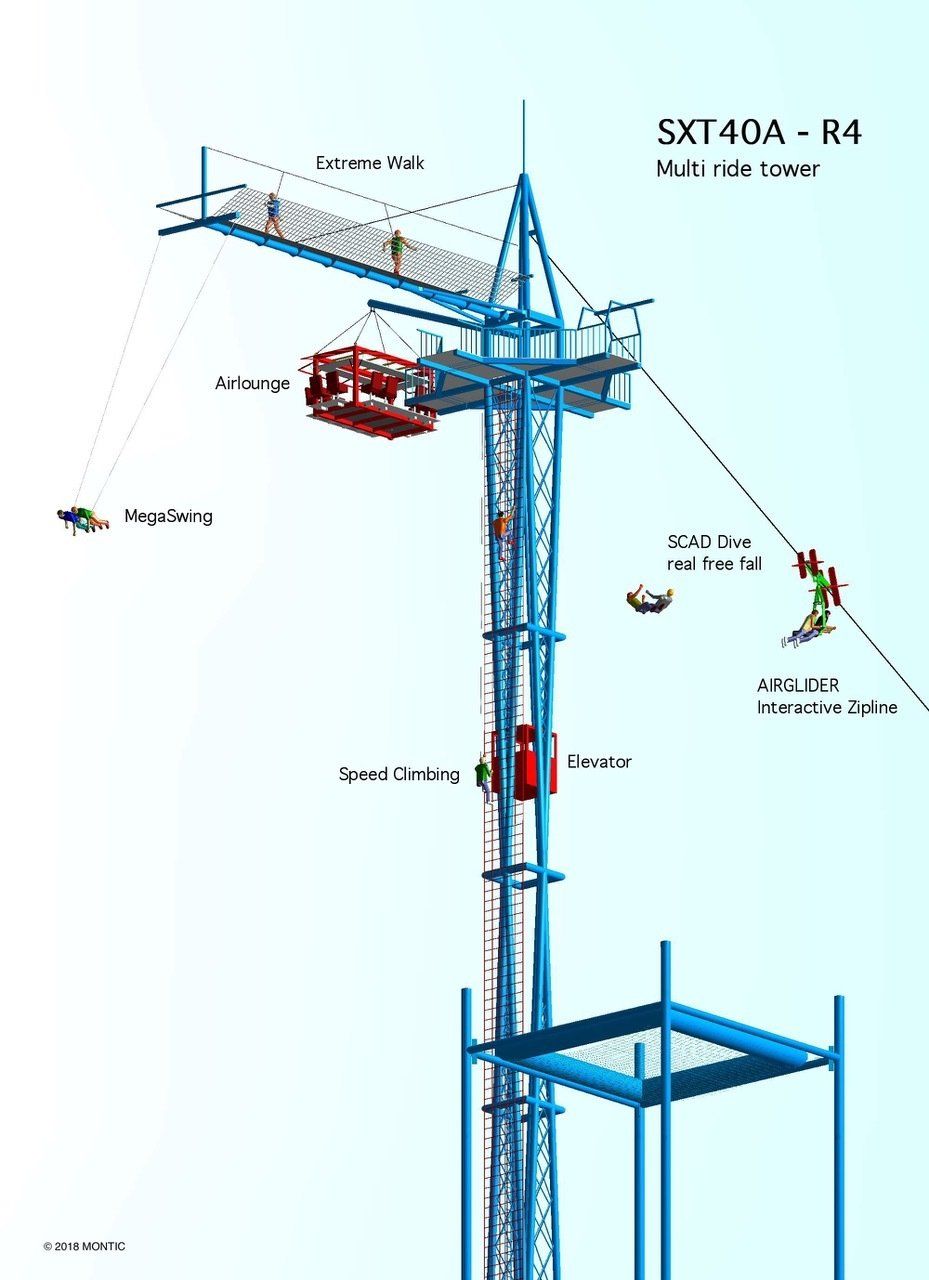

Multi ride Tower SXT A – The concept
● Designed as an iconic landmark
● Modular tower system, designed to hold a variety of rides
● Requires very little ground space
● Variable height, while 48 m is the most economic size,
balancing cost and rider potential.
● Rides can be changed or added without removal of the tower
to adapt to growing success.
● Overall capacity is 560 patrons per hour
● Nature of the rides has the effect to increase overall park
attendence.
Ride Modules / rides (patron capacity per hour)
1. SXT40A / SXT30A - Tower structure only
2. SCAD Dive – worlds only REAL free fall ride (120)
3. AIRGLIDER Double Seat – the paragliding experience (120)
4. MEGA Swing – high rise drop swing (60)
5. EXTREME WALK – high wire experience (100)
6. GLASSFLOOR (100)
7. SPEED CLIMBING – high climber competition (60)
| Technical data | |
|---|---|
| Tower height | 48 (160 ft) |
| Operation level | 40 (130ft) |
| Foot print | 6 x 6 m (18 x 18ft) |
| Foot print SCAD | 12 x 12 m (39 x 39 ft) |
| Activity ramps | 1 - 4 |
| Tower sections | 5 x 10 m |
| Construction | Pipe structure |
| Tower top | Spire |
| Color coating | expoxy |
| Operation wind max. | 7 BFT |
| Shipping | standard container |
| Foundation | 1 |
The tower requires 1 major foundation and does principally not have support cables, but this may be necessary in hurricane areas.

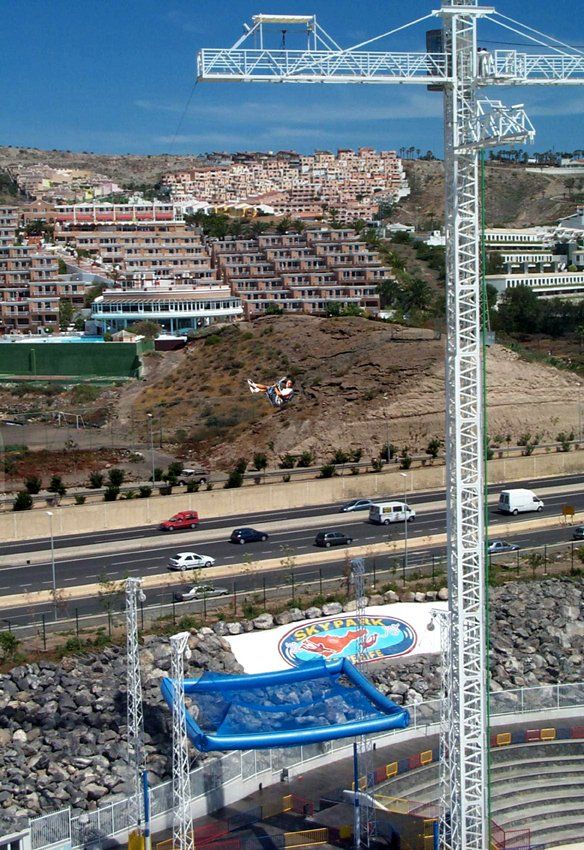

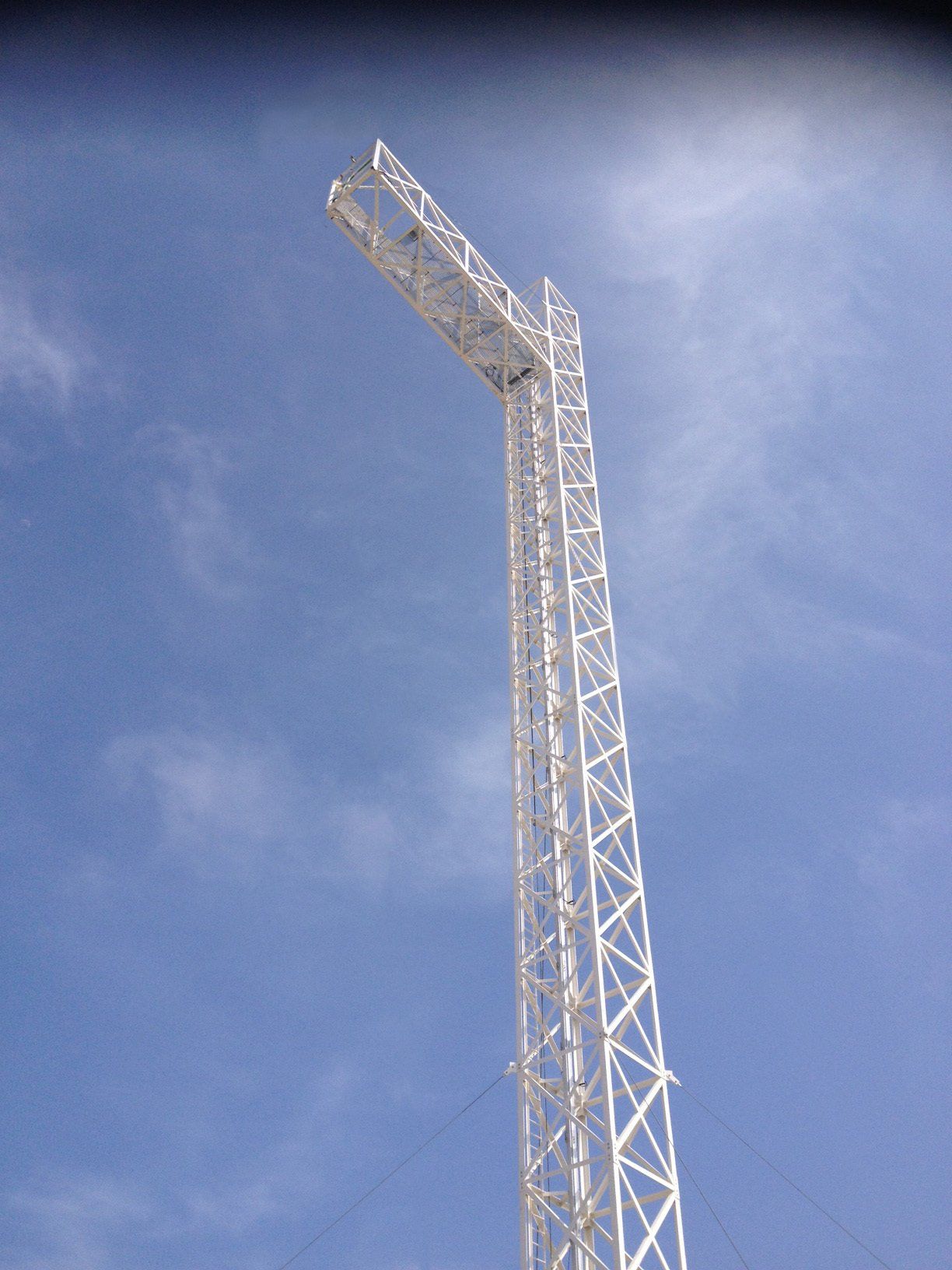

SXT40 Basic tower

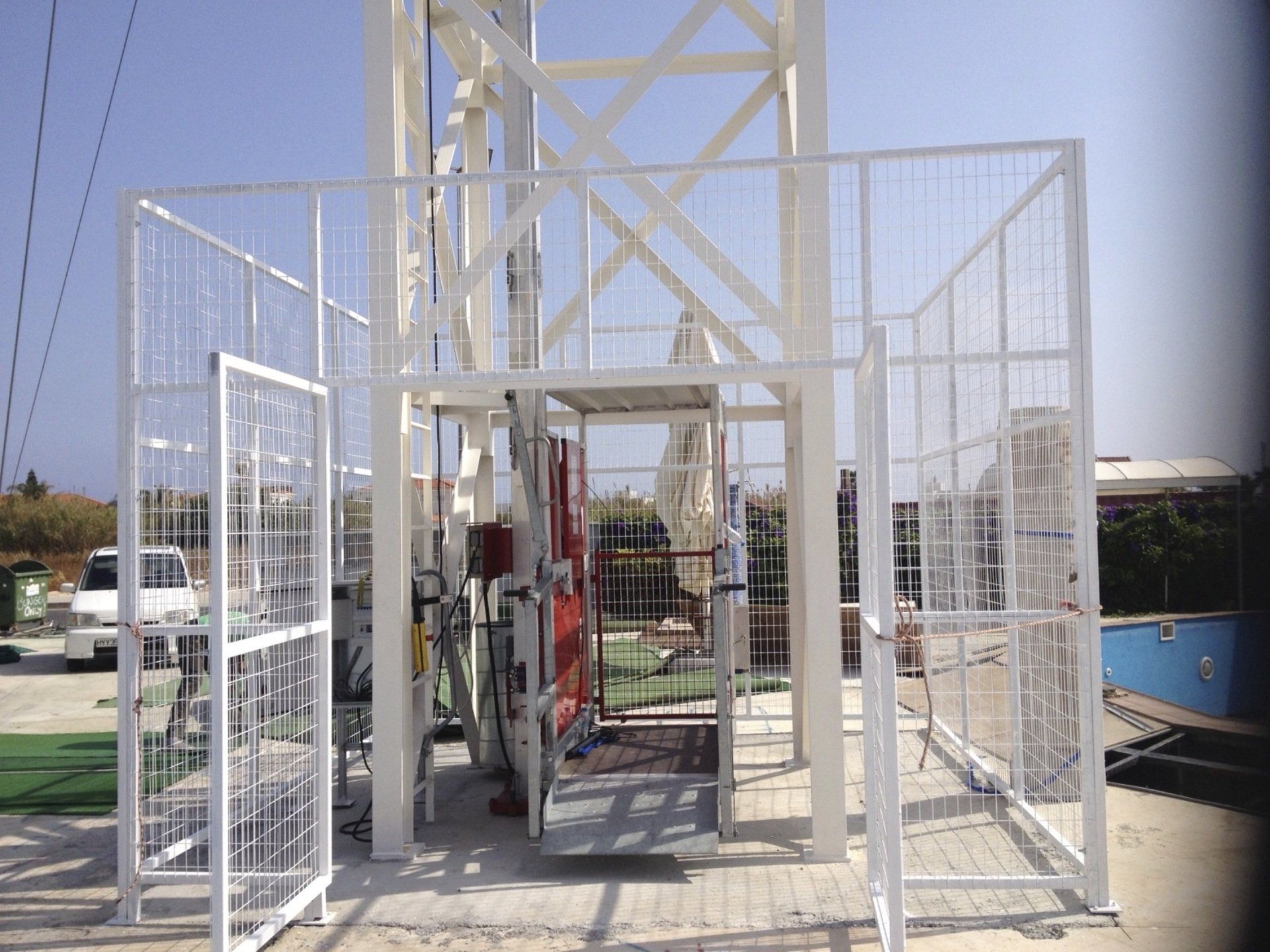

This is a low cost truss tower which can be equipped with two ramps for activities like SCAD, Bungee, or AIRGLIDER. It has a central elevator or can be fitted with a stair case.
The light build requires a few support cables and various small foundations. Its function is the same as the above towers. The design can be enhanced by choosing flashy colours. This tower is available in 20 or 40 m height.
The SCAD is set next to it inside a box and the view is also unobstructed.
The tower is also equipped with floodlights for night operation. All parts of the tower are manufactured to the highest quality according to EN 13814. The SCAD system is type approved by the German technical control board TÜV and complies with the US ASTM standards. The decoration and features can be customized to meet customer-specific requirements.
| Technical data | |
|---|---|
| SXT20 / 40 | 24 / 48 m (80/160 ft) |
| Operation level | 20 / 44 m (65/130 ft) |
| Foot print tower | 6 x 6 m (18 x 18 ft) |
| Foot print SCAD | 8 x 8 m |
| 12 x 12 m | |
| Activity ramps | 2 |
| SCAD capacity | 60 / h |
| Tower sections | 3 - 5 |
| Elevator | 4 persons |
| Construction | Truss |
| Color coating | Epoxy |
| Max. operation wind | 7 BFT |
| Installation | 14 days |
| Shipping | standard container |
